About Product:

Stretchable paper straw molding equipment is a specialized machine designed to produce eco-friendly, flexible paper straws. This equipment utilizes a molding process where paper sheets are fed into molds, shaped into straw forms, and securely bonded together. The equipment is capable of handling biodegradable materials, ensuring that the final product is both sturdy and stretchable, offering enhanced performance compared to traditional paper straws. With adjustable settings for different straw diameters and lengths, this technology also promotes high production efficiency, minimizing waste. It supports sustainability in the beverage industry, providing an alternative to plastic straws while meeting consumer demand for environmentally friendly options.

Equipment Parameters

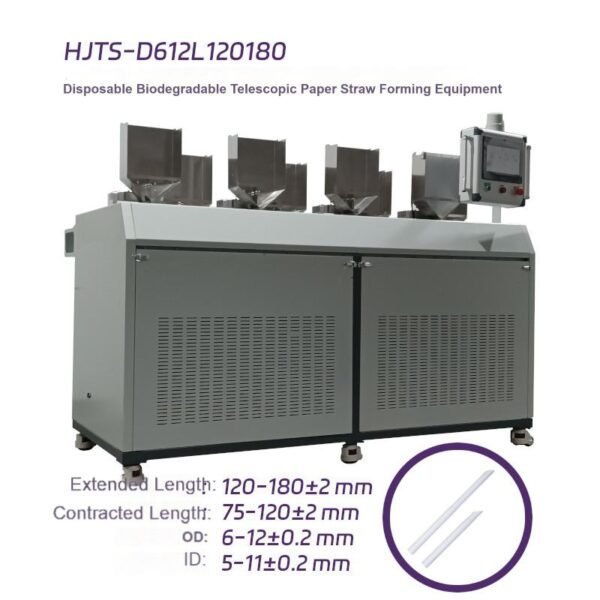

Model: HJTS-D612L120180

Forming Method: Extrusion Forming

Operating Efficiency: 3000 pcs/hour

Yield Rate: 97%

Paper Type: Kraft Paper, Bamboo Pulp Paper

Paper Layers: 3-4 layers

Finished Product Diameter: 6-12mm

Finished Product Length: 120-180mm

Product Application: Dairy Products, Coffee, Juice, Cup Milk Tea, Cup Juice, etc.

Power: 7.5kw

Voltage/Air Pressure: 110v 220v/0.5~0.7mpa

Labor Requirement: One person can operate 4 machines simultaneously

Main Machine Dimensions: 2200*1350*1680mm

Total Weight: 350kg

Product Dimensions

Extended Length: 120-180±2 mm

Contracted Length: 75-120±2 mm

Outer Tube Diameter: 6-12±0.2 mm

Inner Tube Diameter: 5-11±0.2 mm

DEVICE PARAMETER

Model HJTS-D612L120180 Forming method Automatic forming
Running Speed Pieces/minute Yield 97%
Original paper Type Paper bamboo pulp paper Original Paper layer number 3 – 4 Layers
Finished Product Diameter 6-12 mm Finished product length 180 mm
Finished Product are suitable Such as Dairy Products , coffee etc. 7.5kw
Voltage/air pressure 110v, 220v/0.5~0.7 MPA
Main engine size 2200*1350*1680mm

350 kg

Matching Molds Corresponds to one set of molds , and different regular finished products need to match corresponding molds.
